Brown Fused Alumina:A Versatile Player Among Traditional Abrasives,With a Wide Range of Applications
May 22, 2025

As a cornerstone material in the field of industrial grinding,brown fused alumina demonstrates irreplaceable value in industrial scenarios such as machining,refractory materials,and surface treatment,thanks to its high hardness,high toughness,and chemical stability。From traditional metalworking to emerging high-tech industries,brown fused alumina continues to drive the efficiency revolution in industrial manufacturing with its multifaceted properties。


I、Material Properties

The core competitiveness of brown fused alumina comes from its unique crystal structure。Its Mohs hardness reaches 9.0,second only to diamond,and the Al-O bond energy in the crystal is as high as 512kJ/mol,giving it excellent wear resistance。In high-temperature grinding(such as above 1000℃),brown fused alumina can still maintain stable hardness,offering greater advantages than silicon carbide materials(hardness decreases by 20%)。Its crystal fracture toughness(KIC)reaches 3.5MPa·m¹/²,and the particle integrity retention rate exceeds 90% in heavy-load grinding,significantly extending grinding wheel service life。


In terms of chemical stability,brown fused alumina has excellent resistance to acid and alkali corrosive agents at room temperature。Experimental data show that after immersion in a 10% H₂SO₄ solution for 72 hours,its mass loss rate is lower than 0.1%,while the loss rate of quartz sand is as high as 15%。This property gives it a dominant position in fields such as chemical equipment linings and precision instrument polishing。


II、Metal Processing

In the field of metal processing,brown fused alumina grinding wheels demonstrate remarkable adaptability。In rough grinding of stainless steel forgings,their cutting efficiency is 2 times that of silicon carbide grinding wheels,while surface residual stress is reduced by 50%。For hardened steel(above HRC60),using vitrified-bond brown fused alumina grinding wheels can achieve a feed rate of 0.01mm/min and a surface roughness of Ra0.2μm,meeting the machining requirements of aerospace components。


In ultra-precision lapping of bearing steel,micropowder-grade brown fused alumina(W0.5-W5)combined with magnetorheological polishing technology can control surface waviness within 0.05μm,significantly improving rolling fatigue life。After an automobile manufacturer adopted this technology,bearing noise was reduced by 12dB and service life was extended by 3 times。

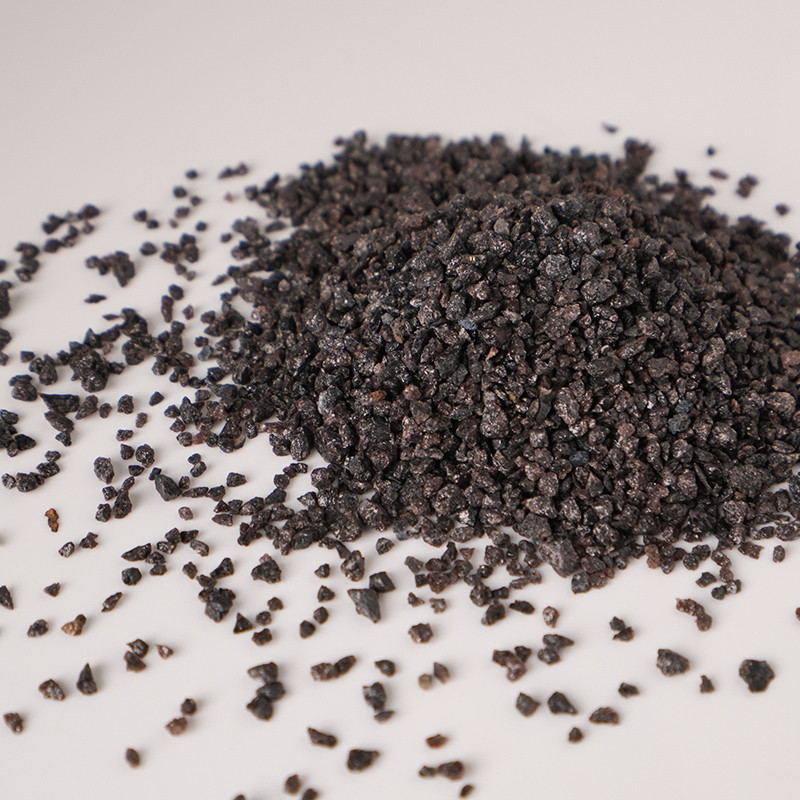

棕刚玉3

III、Non-Metallic Material Processing

In precision grinding of ceramic substrates,brown fused alumina grinding wheels build a multi-level cutting-edge structure through the combination of F,P,and W three-level grit sizes(such as F46-P80-W14)。This technology increases the chip-holding space of the grinding wheel by 30%,reduces grinding heat by 25%,and prevents workpiece burns。In the processing of 5G communication filter substrates,its flatness error is controlled within ±1μm,meeting the requirements of high-frequency signal transmission。


Brown fused alumina also performs well in the field of glass processing。In optical lens polishing,water-washed and acid-washed brown fused alumina micropowder can reduce surface roughness from Ra0.8μm to Ra0.05μm,while reducing scratch density to below 0.5 lines/cm²。After application by an optical company,the product yield increased from 75% to 92%。


The versatility of brown fused alumina is essentially a deep integration of materials science,process technology,and industrial demand。From traditional machining to the preparation of new energy materials,its high hardness,self-sharpening performance,and environmental adaptability continue to expand the boundaries of industrial manufacturing。
